INJORA 4800Kv Roverin Sistema di Alimentazione FOC Impermeabile ESC Brushless con Sensore & Combo Motore 180 per Aggiornamento TRX4M Ascent-18

Brand:

3.5/5;

121.89

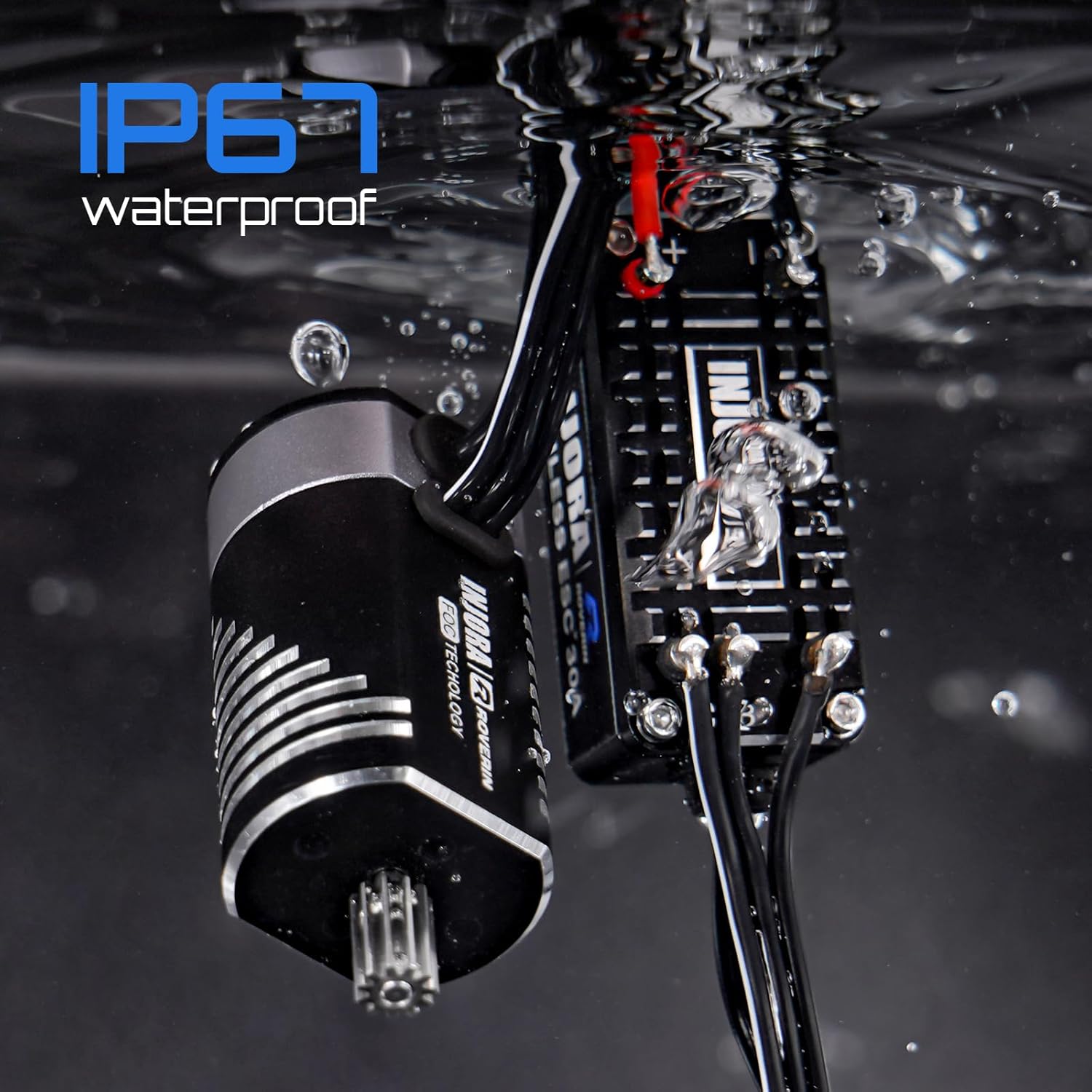

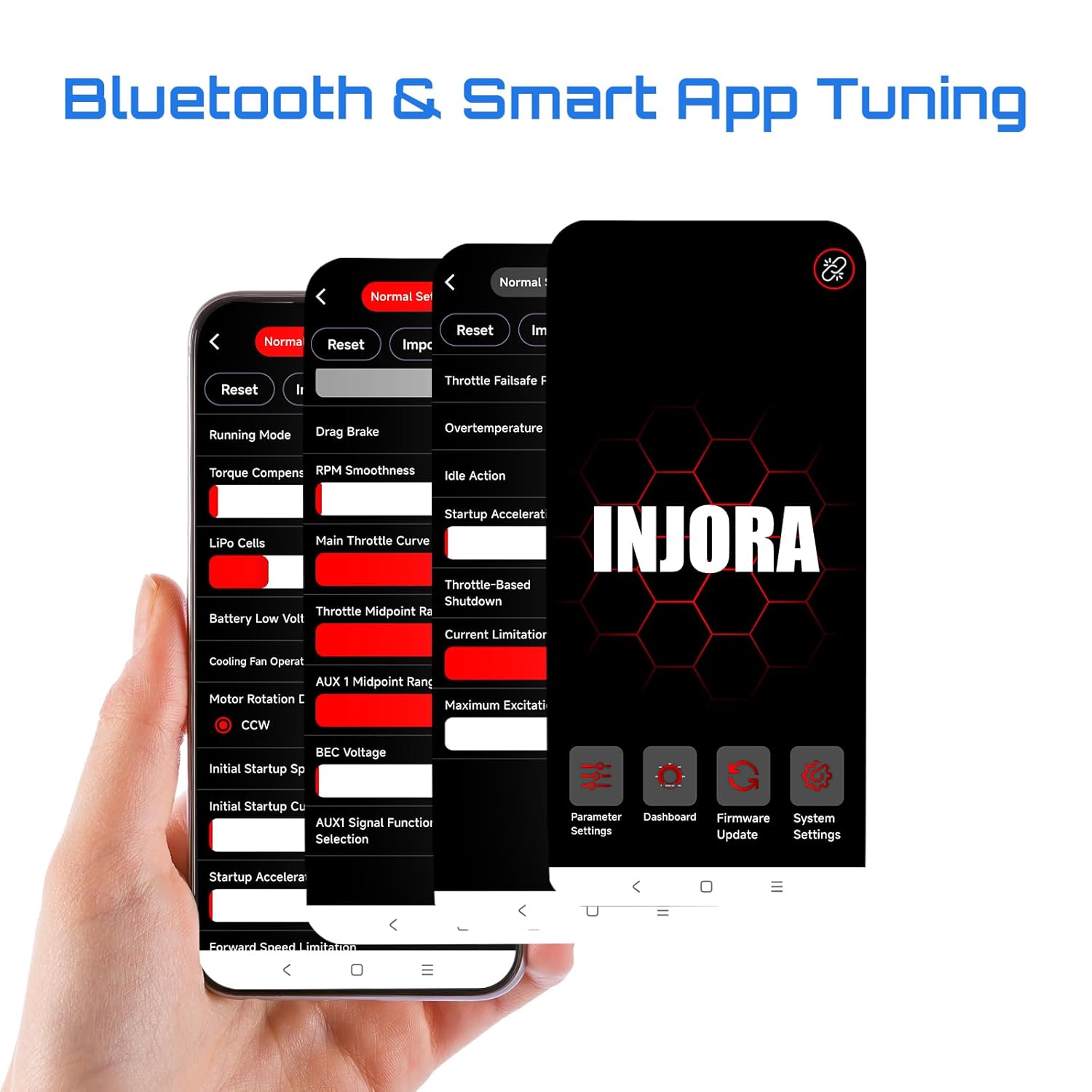

Coppia Potente a Bassa Velocità e Funzionamento Fluido: L'algoritmo FOC garantisce un controllo preciso della potenza, offrendo una coppia elevata anche a velocità estremamente basse per una guida fluida e reattiva. Freno a Drag Regolabile (fino al 200%): Migliora la scalata e il controllo della velocità. Efficienza migliorata e riduzione del rumore. Il doppio della potenza frenante rispetto ai sistemi brushless standard, garantendo un controllo superiore in discesa. Motore con Encoder Magnetico Intelligente: Segnale di uscita trifase stabile per un controllo preciso. Il feedback accurato del sensore elimina i tremolii e migliora l'accelerazione fluida. Impermeabile IP67 e Antipolvere: Completamente protetto da acqua, fango, polvere e neve, garantendo durata in ambienti estremi. Regolazione Bluetooth e App Intelligente: Bluetooth integrato per regolazioni facili—nessun dispositivo aggiuntivo necessario. Regolazione in tempo reale, registrazione dati e aggiornamenti del firmware tramite l'App INJORA Link (iOS & Android). Questo ESC è dotato di un nucleo di calcolo ad alte prestazioni e può diventare molto caldo. Questo è normale e non influisce sulla sua funzionalità o affidabilità. Non toccare direttamente l'ESC prima che si sia raffreddato.

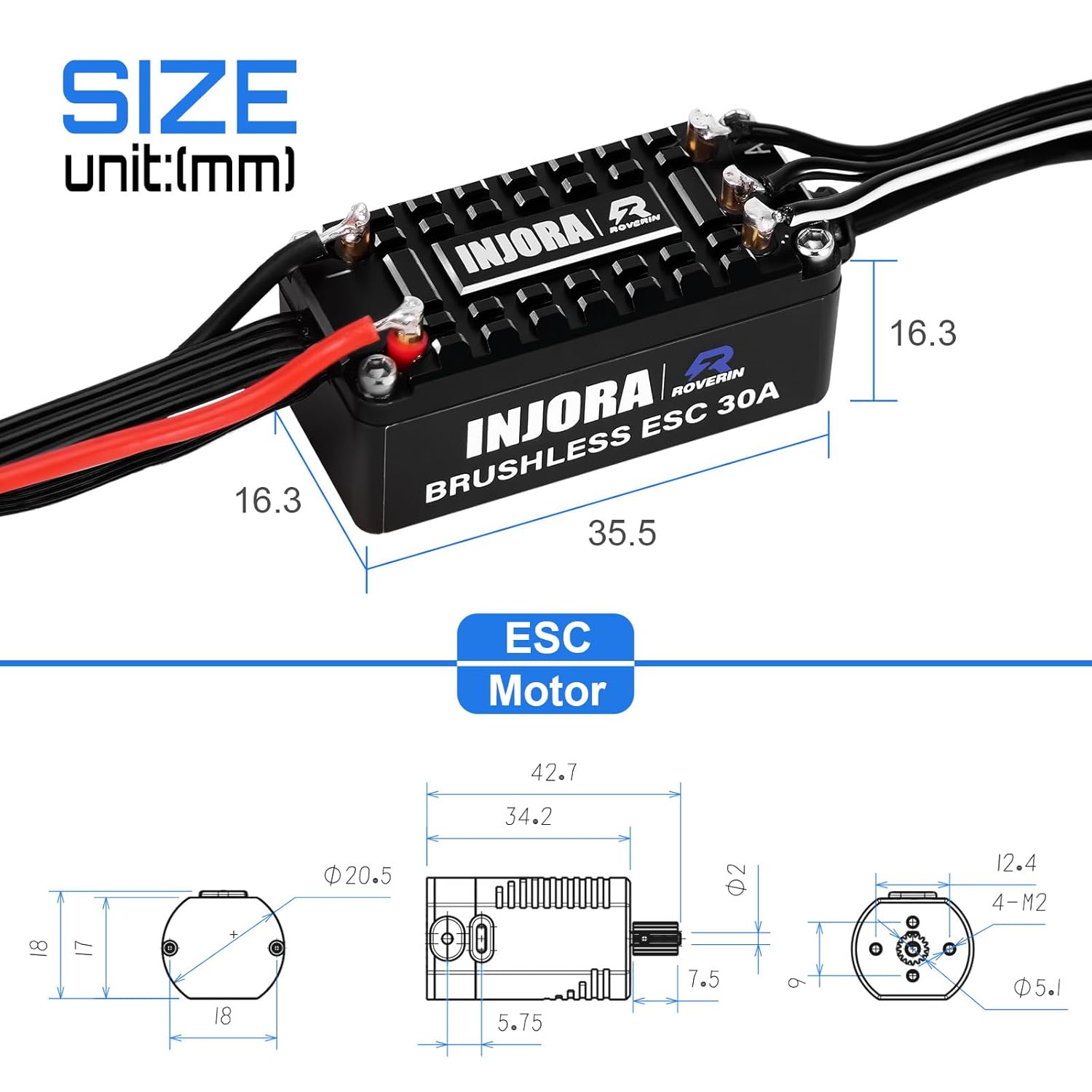

Sistema di Protezione Completo Protezione da Bassa Tensione – Previene lo scaricamento eccessivo. Protezione da Surriscaldamento – Riduce la potenza in caso di surriscaldamento. Protezione da Sovratensione – Limita l’ingresso di tensione eccessiva. Protezione da Sovracorrente – Previene danni da corrente elevata. Protezione da Perdita di Fase – Spegne l'ESC se un cavo di fase si disconnette. Protezione da Perdita del Segnale dell’Acceleratore – Evita situazioni di fuga. Protezione da Disconnessione del Motore – Avvisa e limita la potenza se la comunicazione con il motore viene persa. Specifiche ESC: Tipo ESC: ESC Brushless FOC (FOC-M30) Corrente Continua/Picco: 30A / 100A Motori Supportati: Solo compatibile con Motore Brushless con Sensore INJORA 180 Compatibilità Scala: Veicoli in scala ≤1/18 Supporto Batteria: 2-3S LiPo Uscita BEC: 0-10V regolabile, 5A continuo, 10A picco Impermeabile: Sì Dimensioni: 35.5mm×16.3mm×16.3mm Peso: 25.5g Specifiche MOTORE: KV Motore: 4800KV Tipo Motore: Motore Brushless con Sensore 180 A vuoto (7.4V): RPM: 35000±10% Corrente: <0.9 Sotto carico (7.4V): RPM: 31000±10% Corrente: 3.0A Supporto Batteria: 2-3S LiPo Impermeabile: Sì Dimensioni: 42.7mm×18mm×20.5mm Peso: 36.5g Pignone Motore: 0.4mod 11T ATTENZIONE: Superficie ad Alta Temperatura! Questo ESC è dotato di un nucleo di calcolo ad alte prestazioni e può diventare molto caldo. Questo è normale e non influisce sulla sua funzionalità o affidabilità. Non toccare direttamente l'ESC prima che si sia raffreddato. Contenuto della Confezione: 1* ESC 1* Motore 1* Cavo Adattatore Batteria (Femmina XT30 a Maschio TRX-4M) 1* Cavo Adattatore Batteria (Femmina XT30 a Maschio JST-RCY) 1* Cavo Adattatore Batteria (Femmina XT30 a Maschio JST-PH2.0) 1* MANUALE UTENTE

3.5

6 Review
5 Star
79
4 Star
5
3 Star
5
2 Star
4
1 Star
7

Scrivi la tua recensione

La tua mail non sarà pubblicata. Tutti i campi obbligatori sono segnati con*

Scritto da: Filippo P.
Una bomba, completamente customizzabile erogazione, brake, e coppia via app connessa in BT all'esc
Una bomba, completamente customizzabile erogazione, brake, e coppia via app connessa in BT all'esc Non un semplice kit brushless per i nostri piccoli modelli, per via dell'app ècompletamente configurabile l'erogazione Il motore ha i medesimi fori di fissaggio dell'originale, montabile quindi senza alcuna modifica I medesimi motori serie 180 sono utilizzati anche su altri modelli (1/24 e/o 1/18) quindi questo kit potrebbe tranquillamente essere utilizzato su altri (es scx24, etc)
Scritto da: Amazon Kunde
Top
Habe einige Motoren getestet und um eines klar zu stellen keiner ist so schön flüssig und langsam zu fahren sehr gut ????????
Scritto da: Blond Michael
Magnifique.
Magnifique, très bel objet, mais... Pas encore testé, les produits "Injora" sont en général de très bonne qualité. Aucune inquiétude.
Scritto da: IsaiahReviews
Quality Powerful System
Insane power and surprising wheelpeed on trx4m with crawler gears. 0 cogging whatsoever on the trx4m it'll break stuff super easy because of how much torque it generates it'll keep chugging along until something gives. Even when ESC was power mode it still wouldn't cog. No issue connecting to app worked really well I like it better than furiteks app. I will say the throttle is a little jumpy out of the box give the manual a read, I recommend turning the throlle main curve up to smoothen it and there's a few other settings that can help get that perfect startup. Only negatives for me are the power button I do not like it, just an extra thing to try to fit and also it's prone to fraying really easy mine came off during a run and got chewed up a little exposing the wire, thats my fault but I would've preferred the on off switch on the ESC itself or not at all. The motor temperature stayed pretty cool but the ESC gets extremely hot, never shut off on me but I would've liked the temperature to stay relatively cool a lot of wasted energy IMO. In summary this system is for someone who wants the most powerful electronics for the 1/18s or something that will bolt easily into the stock trx4m transmission housing. Make sure you use a generous amount of grease around where the motor pinion gear meshes with the spur gear. I noticed the mesh is kinda noisy compared to a stock brushed motor, grease helped quiet it down a lot. Great system in my opinion it's well worth the premium price, It's major go. I'll update my review if I run into any catastrophic issues otherwise this stays 5 stars realistically it's 4 1/2 just because of all the wires you have to manage but that's the price you pay for a sensored system like this.
Scritto da: Madmax Brokebastard
Amazing !!!
Unbelievable!! Can't go wrong ????
Scritto da: Mikey
Fast
Used in meus trx4m monster truck. Fast and smooth. Injora link Bluetooth app is awesome. On the fly tuning.
