Convertitore di potenza da XT60 a DC5.5x2.5mm, adattatore da pannello solare XT60 maschio/femmina a DC5525, convertitore da XT60 a DC per sistema solare, batterie per droni-4 pezzi

Brand:

3.3/5;

28.79

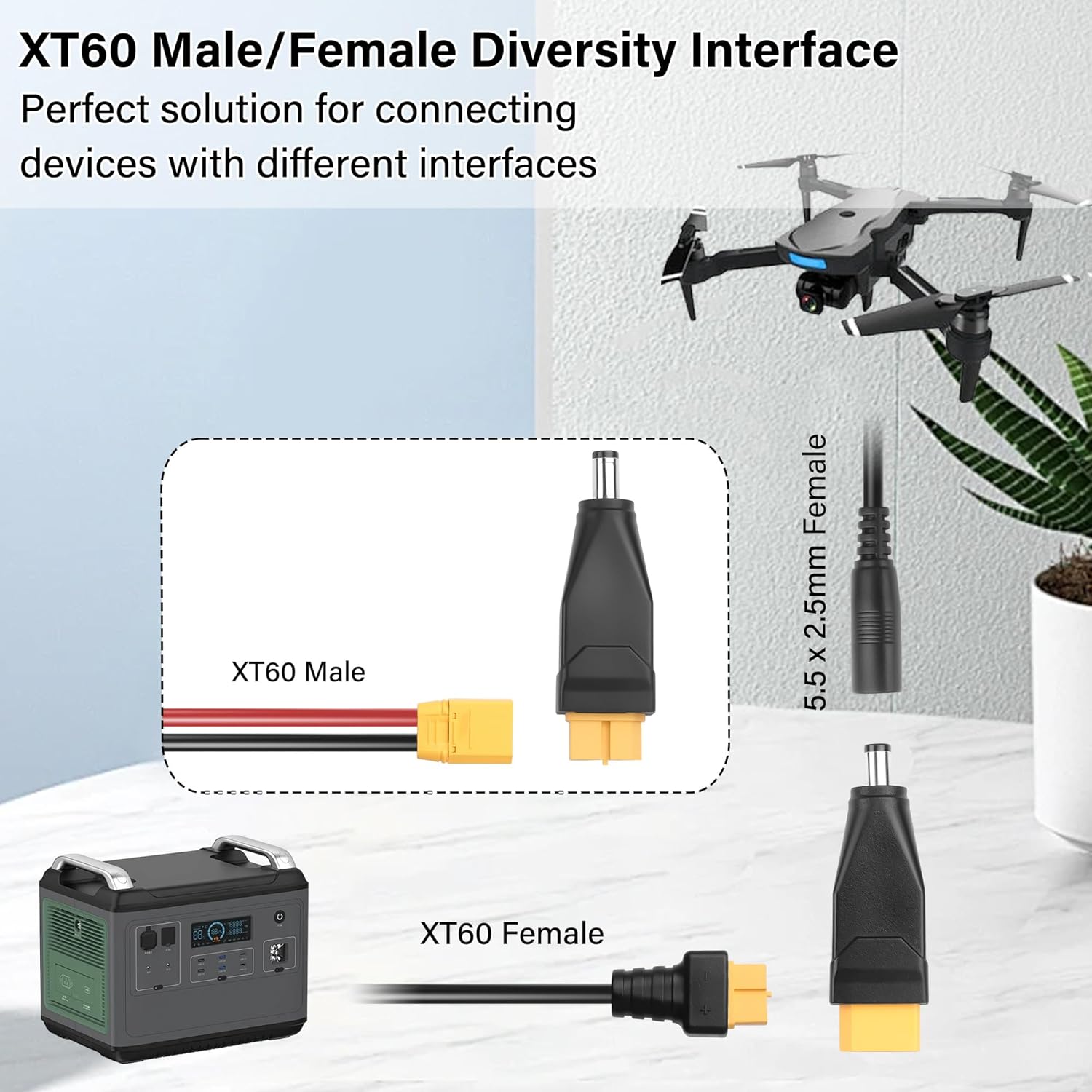

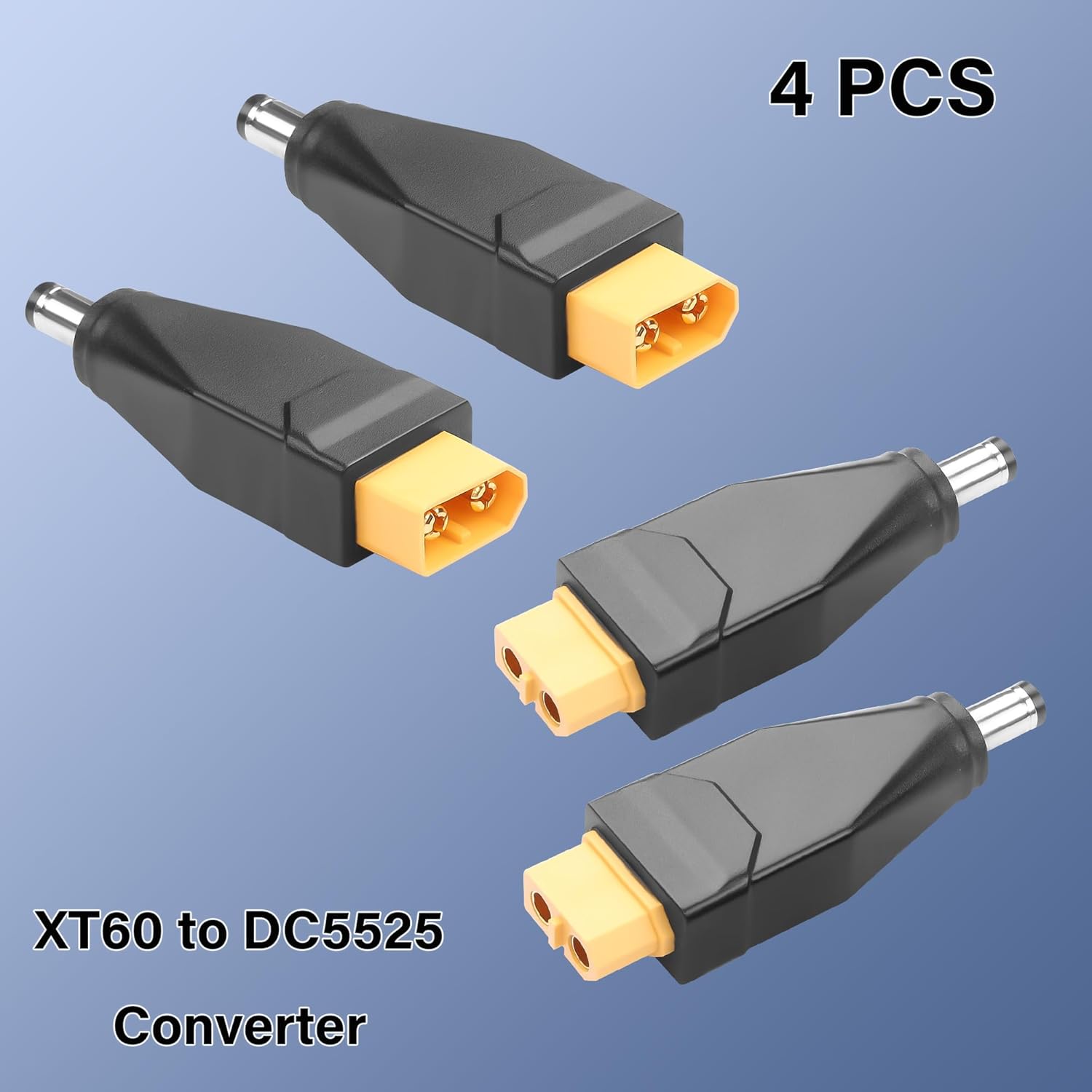

【Conversione ad Alta Efficienza】Questo adattatore da XT60 a DC5525 ha un XT60 (maschio/femmina) su un'estremità e un maschio DC 5,5 mm*2,5 mm. È appositamente progettato per XT60 (maschio/femmina) a DC5525 (5,5 × 2,5 mm), che può essere facilmente collegato a batterie di droni, alimentatori LED, apparecchiature di monitoraggio, ecc. tecnologia dei contatti placcati in oro, resistente alla corrosione e all'ossidazione, avvolto esternamente, resistente alle alte temperature, flessibile e resistente all'usura, PVC e materiali industriali superano 1000 volte, adatto per ambienti esterni/industriali. 【Uso flessibile】 Design Plug and Play, non sono necessari strumenti di installazione aggiuntivi ed è leggero, compatto e facile da trasportare e riporre. Può fornirti una soluzione di connessione elettrica affidabile per l'uso domestico quotidiano, il lavoro all'aperto e le attività degli appassionati di modellismo. 【Elenco acquisti】 È possibile ottenere due interfacce da XT60 maschio a DC5525 maschio*2 e da XT60 femmina a DC5525 maschio*2, connessione di alimentazione facile da realizzare tra diversi dispositivi, per soddisfare le varie esigenze di alimentazione.

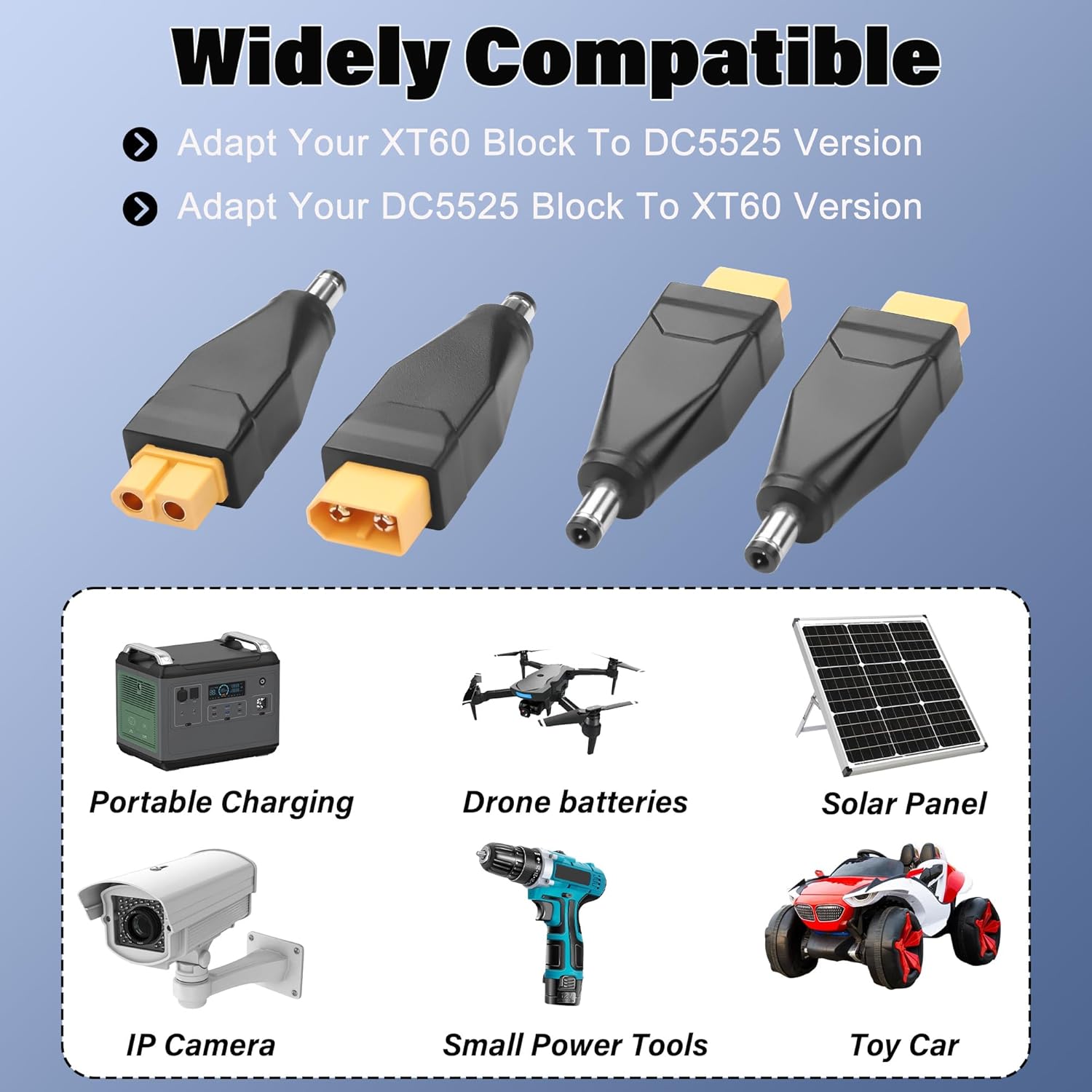

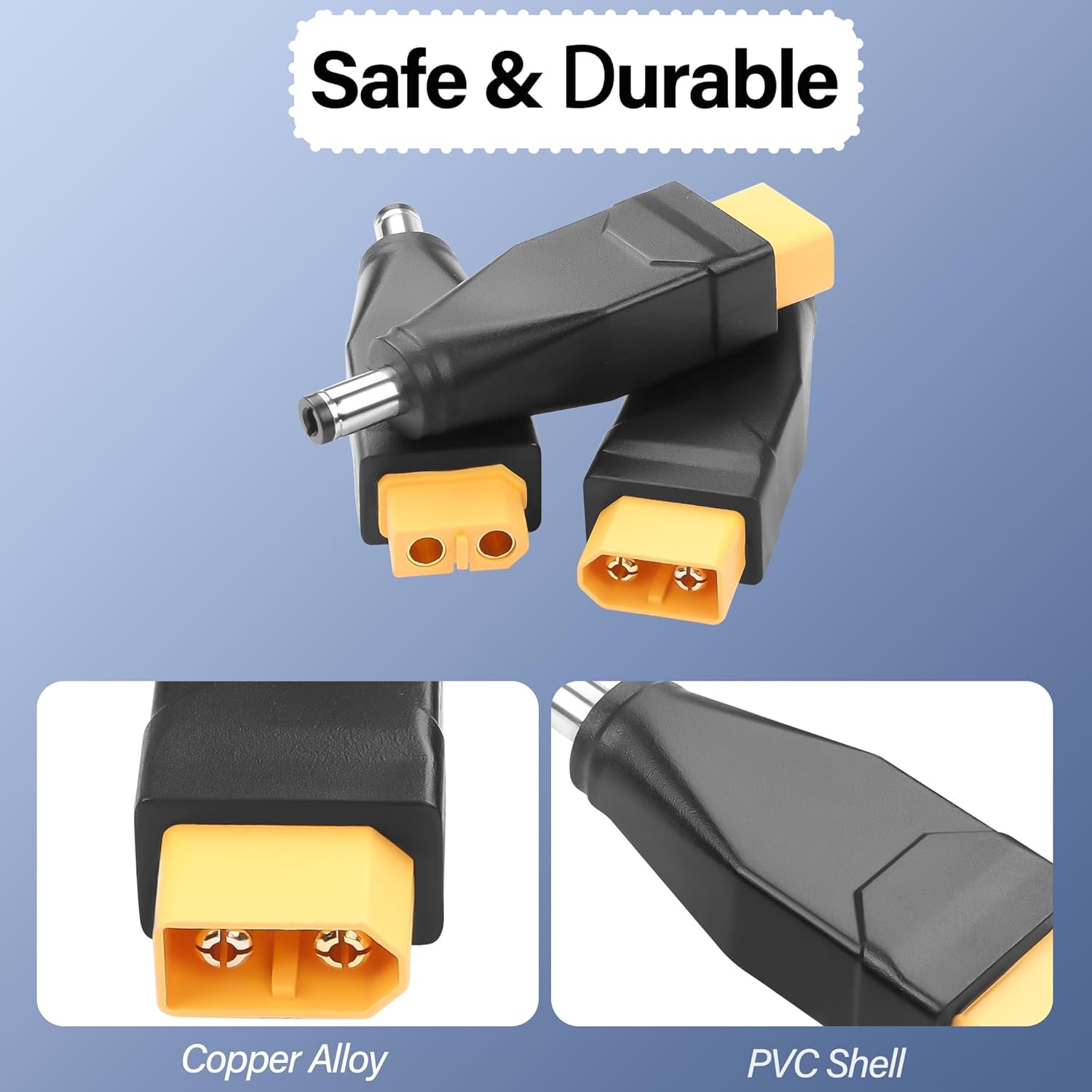

Descrizione prodotto JSADZKJ Adattatore di alimentazione maschio da XT60 (maschio/femmina) a DC5525 Il convertitore da XT60 a DC5525 trasforma le batterie al litio (come le batterie dei modelli di aereo) con interfacce XT60 in interfacce DC standard, compatibili con i dispositivi esistenti. Ampiamente applicabile ad apparecchiature di energia solare, modelli di controllo remoto, apparecchiature FPV, batterie di droni, telecamere di sorveglianza, ecc. Plug and play, nessuna necessità di installazioni complesse, dispositivi facili da collegare Informazioni sul prodotto: Interfaccia 1: XT60 maschio/femmina Interfaccia 2: DC maschio 5,5 mm x 2,5 mm Materiale: guscio elettrico placcato oro + PVC Dettagli dell'imballaggio: Sicurezza Solo per uso esterno. Evitare il contatto con gli occhi. Tenere lontano da fiamme o fonti di calore.
Disponibilité des pièces détachées ‎Information indisponible sur les pièces détachées
Marque ‎JSADZKJ
Mises à jour logicielles garanties jusqu’à ‎Information non disponible

3.3

6 Review
5 Star
48
4 Star
31
3 Star
21
2 Star
0
1 Star
0

Scrivi la tua recensione

La tua mail non sarà pubblicata. Tutti i campi obbligatori sono segnati con*

Scritto da: Jean
Convient pour charger une station d'énergie
Connecteur que j'utilise pour charger une station solaire avec un panneau 100w, Je ne sais pas si ça tient pour une puissance beaucoup plus élevé mais pour mon usage, pas de problème, J'ai maximum 5.5A de courant qui passe sans problème.
Scritto da: buitonio
Résistance électrique assez élevée
Ces adaptateurs XT60 mâles et femelles vers DC5525 semblent robustes. J'ai mesuré leur résistance électrique en faisant passer un courant de 5 A et en mesurant la chute de tension entre les deux extrémités. J'ai obtenu environ 20,843 V - 20,696 V = 0,147 V, ce qui donne une résistance électrique de 0,147 V / 5 A = 29,4 mΩ. Elle est plus grande que celle de mes câbles de 30 cm en 12 AWG avec un connecteur XT60 au bout qui ne fait que 10 mΩ.
Scritto da: Ralph
Decent build quality. Barrel connector is the low-amperage type.
These are perfectly usable adapters for low energy transfer. Running 9 amps for hours through them I had no problem. I wouldn't do more, at least not for extended periods of time. The XT60 end might be rated for 20 amp continuous but the barrel end is the budget type, not for handling that much current for long. I've seen much better barrel connectors of the exact same dimensions for handling more current and these are not. That said still perfectly fine to use for low amperages and under supervision for higher amperages.
Scritto da: Paul Tiffin
5.5x2.1 mm not the 5.5x2.5 as advertised.
XT60 to DC 5.5x2.1 mm power convertors. Two XT60 male and two XT60 female to DC 5.5x2.1 mm male barrel plugs. These are very useful connectors but it should be noted that the ones I received were 5.5x2.1 mm plugs not the 5.5x2.5 mm as advertised. Mostly they are interchangeable but the 2.5 mm inner pins won't go into a 2.1 mm hole. Otherwise, I have used these on low load applications without fault. My only other observation is that they are unbranded and unmarked which is not a good sign with regard to reliability and quality control.
Scritto da: Amazon Customer
XT60 to DC5525 Converter The Perfect Bridge for Solar Generators and Standard Devices
If you’ve got a bunch of solar generators that use the DC5525 (5.5mm x 2.5mm) connector, this XT60 to DC5525 converter is a total lifesaver. It allows you to connect those generators to devices or cables that use the more common XT60 interface, making your setup far more versatile and future-ready. The build quality is excellent—gold-plated contacts ensure solid conductivity and corrosion resistance, while the flexible PVC shell is heat-resistant and durable enough for outdoor or industrial use. It’s plug-and-play, so there’s no need for tools or complicated installation. Just connect and go. This 4-pack includes both XT60 male and female to DC5525 adapters, giving you options for different gear and setups. Whether you're powering drone batteries, LED lights, or other DC-powered devices, this converter makes it easy to bridge the gap between your solar gear and standard XT60 accessories. Highly recommended for anyone with a mixed power ecosystem it’s simple, reliable, and expands what your solar generators can do.
Scritto da: Troy
Worked as expected.
Good adapters, well made. Fit well. There's not much more to write - if you need an XT60 to 5.5mm barrel plug adapter, these are solid. Both XT60 directions are included, which adds to the versatility. They went right into my bag of solar adapters for solving connection challenges in the field.
